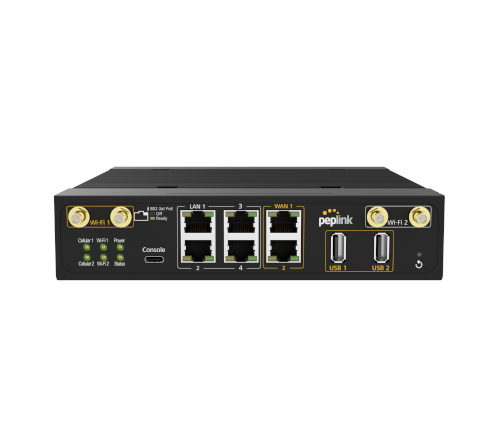

MBX Mini

The MBX Mini delivers enterprise-grade power and redundancy in a compact form factor. It features dual embedded 5G modems (expandable to four via USB MAX Adapters), triple redundant power inputs (AC, DC 12-56V, USB-C), PoE-enabled LAN ports, and Peplink’s SpeedFusion technology for unbreakable VPN bonding, hot failover, smoothing, and overflow. It’s rugged, with wide temperature range and certifications for demanding deployments like vehicles, remote sites, construction, maritime, and temporary networks. FusionSIM-ready for easy remote SIM management (implied through related features). Ideal for scenarios needing fast 5G, Wi-Fi, and multi-WAN reliability without taking up much space.

Small is the new mighty

Bring your deployments to life with the versatility of the MBX Mini. It’s just as brilliant as any other MBX device we have to offer. So connect your devices to the PoE enabled LAN ports to provide network simplicity as well as IEEE 802.1X port authentication. This MBX Mini has the power to achieve it all.

Keep your connection flowing in whatever deployment that you’re immersed in and deliver more power and redundancy with THREE power input options: AC, DC, and USB-C.

One. Two. Three. Four.

We know fast connections are critical to achieving great things. Its dual-band Wi-Fi and 5G capabilities ensure you experience the fastest available network. If the dual embedded cellular WANs are not enough, the MBX Mini can be expanded to FOUR cellular WANs by simply connecting it to our MAX Adapters via the dual USB ports.

• Dual embedded 5G modems with redundant SIM slots; expandable to 4 cellular WANs via 2x USB ports + MAX Adapters
• Dual-band Wi-Fi (802.11ac, up to 1166 Mbps, 2×2 MIMO, simultaneous WAN/AP mode)
• Triple power inputs: AC (100-240V), DC (12-56V terminal block with ignition sense), USB-C — for maximum redundancy
• Up to 6x 802.3at PoE ports (requires dual 54V DC inputs for full PoE support; partial with single input)
• SpeedFusion VPN: Bandwidth bonding, hot failover, smoothing, overflow; up to 3/20 peers (expandable with license)
• Intelligent failover, load balancing (multiple algorithms: Weighted, Enforced, Persistence, Priority, Overflow, Least Used, Lowest Latency, Fastest Response Time)
• Advanced QoS, complete VPN suite (IPsec, PPTP, 256-bit AES), IPv6, VLAN support, DoS prevention, stateful firewall
• InControl cloud management, web/CLI interface, SNMP, email alerts
• Rugged: -40°C to +65°C operating temperature, shock/vibration resistant (EN 61373, EN 50155), wide certifications (FCC, CE, RoHS, E-Mark, PTCRB)
• IEEE 802.1X port authentication, Bandwidth Allowance Monitor, Dynamic DNS support

• Enterprise mobility in vehicles (construction, autonomous, fleet)
• Remote/temporary sites, pop-up networks
• Maritime or rugged outdoor environments
• Starlink backup or primary cellular failover/bonding
• Any compact deployment needing enterprise redundancy, SpeedFusion bonding, and multi-WAN reliability

• Embedded Cellular Modems: 2x 5G (with redundant SIM slots)
• WAN Interfaces: 2x GE Ethernet (802.3at PoE), 2x USB 2.0 (for MAX Adapters/4G/3G modems)
• LAN Interfaces: 4x GE Ethernet (802.3at PoE)
• Wi-Fi Interface: 802.11ac/a/b/g/n, 1166 Mbps, 2×2 MIMO, dual-band simultaneous (WAN and/or AP)
• Router Throughput: 2.5 Gbps
• SpeedFusion VPN Throughput: 600 Mbps (no encryption), 500 Mbps (256-bit AES)
• 5G Cellular Data Rate: Downlink up to 3.4 Gbps / Uplink up to 900 Mbps (LTE CAT-20: 1.6 Gbps / 200 Mbps fallback)

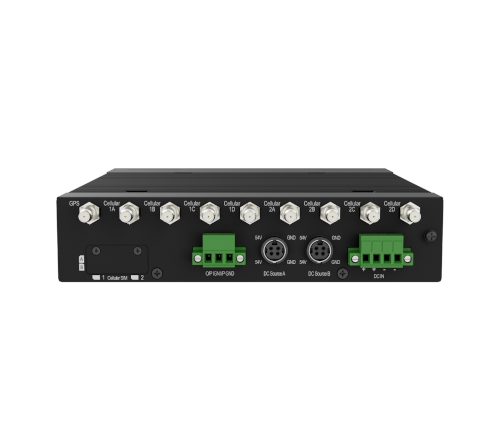

• Antenna Connectors: 8x QMA (cellular), 1x QMA (GPS), 4x RP-SMA (Wi-Fi)
• Power Consumption: 45W max (without PoE)
• Dimensions: 7.32 × 8.05 × 1.61 inches (186 × 204.5 × 41 mm)
• Weight: 4.19 lb (1.9 kg)
• Operating Temperature: -40°F to 149°F (-40°C to 65°C)
• Humidity: 15% – 95% (non-condensing)
• Certifications: FCC, CE, RoHS, E-Mark, PTCRB; Shock/Vibration: EN 61373/IEC 61373, EN 50155; Carrier certs (select models: AT&T, FirstNet, Verizon C-Band, US Cellular)
