MAX Transit Pro E
High-speed, flexible 5G router in a rugged portable package
The Peplink MAX Transit Pro E is a rugged, mobile 5G router with Edge Compute Engine, designed for industrial, transportation, and adverse remote environments.
The MAX Transit Pro E features a single embedded 5G modem (Sub-6 GHz NSA/SA) with redundant SIM options, Wi-Fi 6 dual-band, 1 Gbps router throughput, PoE+ output (802.3at up to 30W), multiple power inputs (including ignition sensing), built-in GPS with dead-reckoning, GPIO/serial for telemetry, and Edge Computing (Docker/Python support with 8GB storage). It enables unbreakable connectivity via SpeedFusion VPN (hot failover, smoothing, bonding), supports secondary WANs like Starlink, and offers InControl 2 cloud management for zero-touch provisioning and fleet tracking. Rugged ventless metal design with widest temp range suits vehicles, emergency response, mobile workstations, and Vehicle-as-a-Node applications.
- Single embedded 5G modem with redundant SIM slots (Nano-SIM, Peplink eSIM, BYO eSIM up to 2 profiles, RemoteSIM, FusionSIM)
- Wi-Fi 6 (802.11ax) simultaneous dual-band (2.4/5 GHz), 2×2 MIMO for Wi-Fi WAN/AP mode; supports up to 150 users
- PoE+ output on one LAN port (802.3at, requires 48–54V input)
- Flexible power: 12–56V DC (terminal block/Micro-Fit with ignition sensing), AC adapter, wide tolerance for vehicle/remote use
- SpeedFusion VPN: Hot Failover, WAN Smoothing, Bandwidth Bonding; base 2 peers (expandable to 5/10/20 with PrimeCare/license); 256-bit AES
- Edge Computing: Run Docker/containers, Python apps without extra hardware
- Advanced GPS: Location tracking, dead-reckoning for reliable positioning in tunnels/low-signal areas
- GPIO, ignition sensing, RS-232 serial terminal for direct sensor/telemetry integration
- Intelligent load balancing/failover (algorithms: Weighted, Priority, Overflow, Persistence, Least Used, Lowest Latency, Enforced, Fastest Response)
- Full security suite: Stateful firewall, DoS prevention, IPsec VPN, QoS (application prioritization), VLAN, NAT, port forwarding, captive portal
- InControl 2 cloud: Remote config, monitoring, firmware updates, alerts, real-time fleet maps
- Public transportation, emergency vehicles, fleet management
- Mobile workstations, adverse remote/industrial sites
- Vehicle-as-a-Node or edge compute applications
- Hybrid connectivity (e.g., 5G primary + Starlink backup)
- Deployments needing PoE-powered devices, telemetry sensors, or secure remote access
- Embedded Cellular Modem: 1x 5G (Sub-6 GHz NSA/SA); fallback to CAT-20 LTE
- Cellular Data Rates (Theoretical Max): 5G: 3.4 Gbps down / 900 Mbps up; LTE CAT-20: 1.6 Gbps down / 200 Mbps up
- WAN Interfaces: 1x GE Ethernet (configurable WAN/LAN)

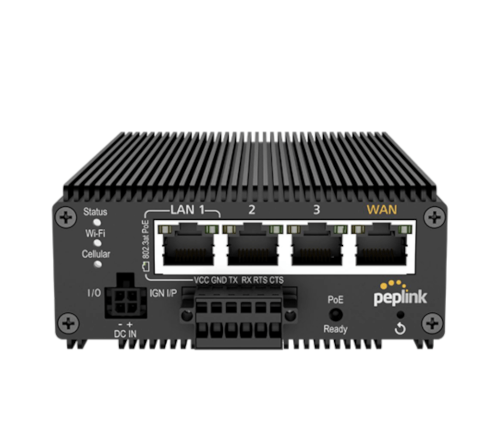

- LAN Interfaces: 3x GE Ethernet (one with 802.3at PoE output)
- Wi-Fi: Wi-Fi 6 (802.11ax/a/b/g/n/ac), dual-band simultaneous, 2×2 MIMO, Wi-Fi WAN/AP
- Router Throughput: 1 Gbps
- SpeedFusion VPN Throughput: 400 Mbps (no encryption), 200 Mbps (256-bit AES)
- Recommended Users: 25–150

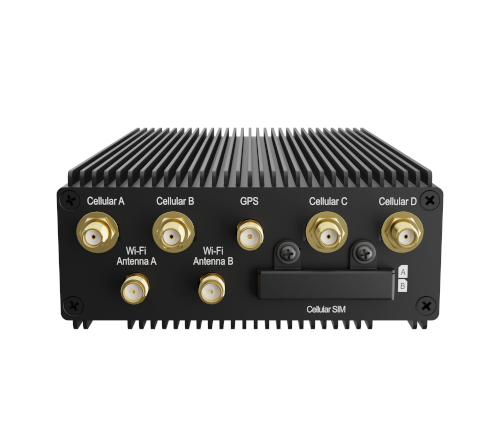

- Antenna Connectors: 4x SMA (cellular), 2x RP-SMA (Wi-Fi), 1x SMA (GPS)
- Power Input: 12–56V DC (terminal block/Micro-Fit), AC 100–240V adapter
- Power Consumption: 12W nominal, 19W max (excluding PoE output)
- Dimensions: 6.3 × 4.0 × 1.7 inches (160 × 101 × 43.5 mm)
- Weight: 2.1 lb (900 g)
- Operating Temperature: -40°F to 158°F (-40°C to 70°C)
- Humidity: 15–95% non-condensing
- Certifications: CE, RoHS, RCM, UKCA, EN 61000 (EMC); vehicle/railway compliance in related series (e.g., E-Mark, EN 61373 pending)
