MAX BR2
The Peplink MAX BR2 is a rugged, dual-cellular LTE router built for unbreakable connectivity in remote, industrial, and mobile environments.
The MAX BR2 features two embedded LTE modems with redundant SIM slots, plus external WAN options (Ethernet, USB, Wi-Fi as WAN), delivering reliable high-speed connectivity even in the most challenging locations. It supports Peplink’s SpeedFusion technology (with PrimeCare subscription) for hot failover, smoothing, and bandwidth bonding. The fanless metal enclosure, wide temperature range, ignition sensing, GPS, and remote SIM management (eSIM, FusionSIM, RemoteSIM) make it ideal for zero-truck-roll installations. Priced around $599, it’s cost-effective for large-scale fleets, ATMs, power banks, or remote monitoring.
- Dual embedded LTE modems (CAT-4 or CAT-7 variants) with redundant SIM slots per modem (Nano-SIM, Peplink eSIM, BYO eSIM, FusionSIM, RemoteSIM support)
- Multiple WANs: 1x GE Ethernet WAN, 1x USB WAN, Wi-Fi as WAN (simultaneous dual-band Wi-Fi 5)
- 4x GE Ethernet LAN ports
- SpeedFusion VPN: Hot Failover, Smoothing, Bandwidth Bonding (2/5 peers with PrimeCare; requires subscription for full features)
- Flexible power: 12–30V DC (Micro-Fit connector with ignition sensing), 802.3at PoE input, AC adapter; terminal block option
- Advanced features: Load balancing/failover algorithms, QoS, stateful firewall, DoS prevention, VLAN, captive portal, InControl 2 cloud management, InTouch remote access, GPS tracking

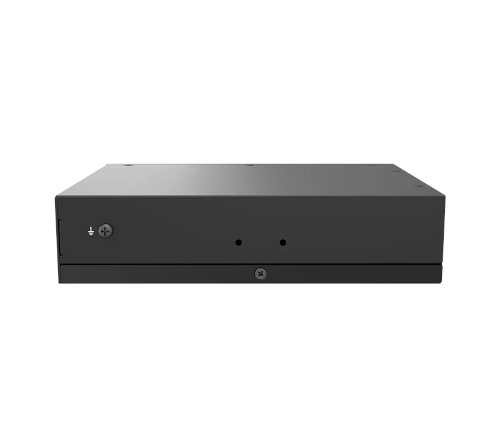

- Rugged: Fanless metal enclosure, -40°C to +65°C operation, EN 61000 EMC compliance
- Security: 256-bit AES encryption, IPsec VPN compatibility
- Remote industrial sites, utilities, or SCADA
- Fleet/vehicle deployments (ignition sensing, GPS)
- ATMs, power banks, kiosks, or vending machines
- Mass deployments requiring simple, remote provisioning
- Backup or primary connectivity in areas with poor wired infrastructure
- Embedded Cellular Modems: 2x LTE (CAT-4: 150 Mbps down / 50 Mbps up; CAT-7: 300 Mbps down / 150 Mbps up theoretical max)
- WAN Interfaces: 1x 10/100/1000M Ethernet (WAN), 1x USB, Wi-Fi 5 as WAN
- LAN Interfaces: 4x 10/100/1000M Ethernet
- Wi-Fi: Simultaneous Dual-Band (2.4/5 GHz) Wi-Fi 5, 2×2 MIMO, Wi-Fi WAN/AP mode
- Router Throughput: 300 Mbps
- SpeedFusion VPN Throughput: 80 Mbps (no encryption), 60 Mbps (256-bit AES)
- Recommended Users: 1–60

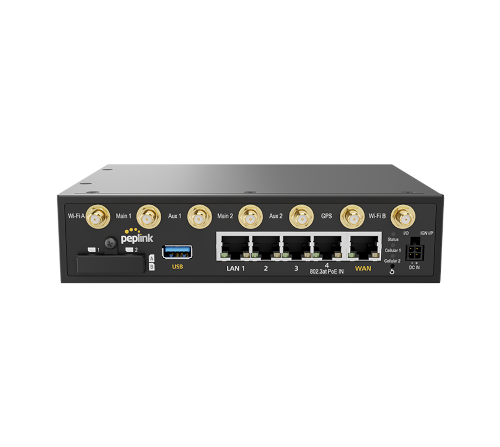

- Antenna Connectors: 4x SMA (cellular), 2x RP-SMA (Wi-Fi), 1x SMA (GPS)
- Power Input: 12–30V DC, PoE 802.3at, AC 100–240V adapter
- Power Consumption: 8W nominal / 13W max (without USB output)
- Dimensions: 6.89 × 5.12 × 1.61 inches (175 × 130 × 41 mm)
- Weight: 2.43 lb (1.1 kg)
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Humidity: 15–95% non-condensing
- Certifications: FCC, CE, RoHS, EN 61000 EMC; US carrier certs (AT&T, T-Mobile, Verizon, FirstNet on select models)
