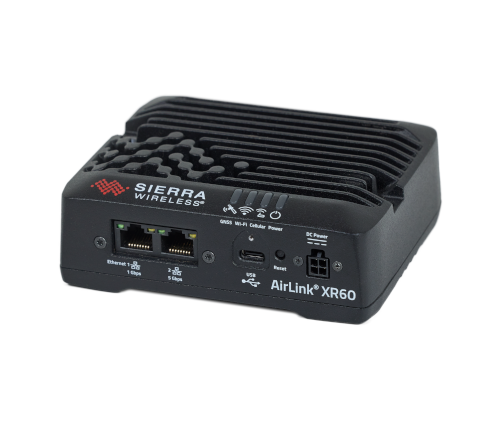

AirLink® XR60
World’s Smallest Rugged 5G Router
The Semtech AirLink XR60 is the world’s smallest rugged 5G router, delivering ultra-compact, high-performance connectivity for space-constrained and harsh environments. It combines blazing-fast 5G (up to 2.8 Gbps downlink / 900 Mbps uplink theoretical), optional Wi-Fi 6, gigabit/5 Gbps Ethernet, and advanced edge capabilities in a sealed aluminum housing — ideal for tight industrial enclosures, fast-moving vehicles, and mission-critical fixed/mobile applications.
AirLink XR60: Ultra-Compact, Rugged 5G Router
The Semtech AirLink XR60 is the world’s smallest rugged 5G cellular router, purpose-built for ultra-compact and harsh environments where space is limited and reliability is non-negotiable. It delivers high-performance 5G connectivity combined with optional Wi-Fi 6, making it ideal for tight industrial enclosures, fast-moving vehicles, mission-critical fixed installations, and edge deployments that demand robust performance without compromise.
Equipped with 5G Sub-6 GHz technology, the XR60 supports advanced networking features, private network integration, and edge computing capabilities through AirLink OS. This allows organizations to future-proof their connectivity, accelerate digital transformation, and support mission-critical applications with seamless, high-speed wireless access. Optional 2×2 MIMO Wi-Fi 6 provides additional flexibility for local device connectivity, while variants offer single serial/single Ethernet (1 Gbps) or dual Ethernet (1 Gbps + 5 Gbps) configurations, plus dual-band GNSS for precise positioning.
The XR60 features an IP64-rated sealed aluminum enclosure for superior protection against dust, water, shock, vibration, and extreme temperatures. Backed by AirLink Complete, it includes 5 years of hardware warranty, 24/7 technical support, secure remote management, and ongoing firmware updates to ensure long-term network optimization and uptime.
Compact, rugged, and powerful, the AirLink XR60 brings true 5G performance to the most challenging locations, empowering industries to stay connected and resilient in the era of digital transformation.
- Ultra-Compact & Rugged — Five times faster and two times smaller than leading 4G routers (e.g., vs. AirLink MP70); IP64-rated sealed aluminum enclosure; MIL-STD-810H compliant for shock, vibration, thermal shock, and humidity; wide operating temperature (-40°C to +75°C, or -30°C to +70°C with Wi-Fi).
- High-Performance 5G — 4×4 MIMO 5G Sub-6 GHz (global bands, including FirstNet Band 14 support); LTE Cat-20 fallback; dual Nano-SIM (4FF) for redundancy and automatic carrier switching.
- Optional Wi-Fi 6 — 2×2 MU-MIMO dual-band (2.4/5 GHz); up to 1.2 Gbps theoretical throughput; supports AP/client modes, up to 32 clients, 3 SSIDs, WPA2/3 security.
- Flexible Interfaces — Variants include single/dual Ethernet (1 Gbps + 5 Gbps), dual RS-232/485 serial, USB 3.2 Gen 1 Type-C (power delivery + 5 Gbps LAN), 1 GPIO, dual-band 40-channel GNSS.
- Unbreakable Reliability — Power redundancy via USB-C (45W); low voltage disconnect, ignition sense with delay shutdown, transient protection (+200 VDC load dump); high MTBF (up to 32+ years); Semtech Cognitive Wireless for optimized performance.
- Advanced Networking & Security — 800 Mbps firewall TCP throughput; IPv4/IPv6 routing, NAT, QoS, policy-based routing, stateful firewall, IPsec VPN (up to 175 Mbps, AES-256, FIPS 140-2 Level 1); WPA2/3 security.
- Edge Computing — Docker container support (licensed via ALMS); quad-core Arm A53 CPU, ~1.2 GB RAM, 750 MB flash for custom applications.
- Cloud Management & Services — AirLink OS powered; AirLink Complete included (5 years: 24/7 support, extended warranty, ALMS remote management, critical firmware updates through 2029+); optional AirLink Premium for advanced reporting and advance replacement.
Experience gigabit 5G performance in the smallest rugged form factor — future-proof, reliable, and ready for the toughest deployments.
- Critical infrastructure, video surveillance, smart cities
- Manufacturing, public safety vehicles, fleet management
- Fixed wireless access, industrial IoT in harsh enclosures
- Rail (EN50155/EN45545), hazardous locations (Class 1 Div 2, IECEx/ATEX pending), and vehicle applications (E-Mark, ISO7637-2, SAE J1455)

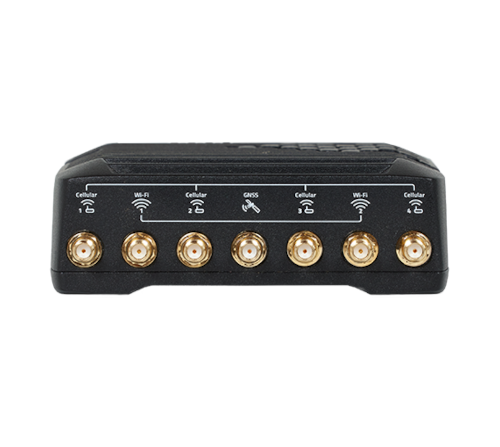

- Cellular: 5G (EM9291 radio, 4×4 MIMO); peak 2.8 Gbps DL / 900 Mbps UL; extensive global 5G/LTE/3G bands; SMA RF connectors; dual SIM.
- Wi-Fi (optional): Wi-Fi 6 (2×2 MIMO); 1.2 Gbps theoretical; reverse polarity SMA connectors.
- Ports: Ethernet variants: 1×1 Gbps or 1 Gbps + 5 Gbps RJ45; serial variant: dual RS-232/485; USB-C (5 Gbps + power delivery); 1 GPIO.
- Power: 7–36 VDC input; redundant USB-C (45W); idle ~3.5W; standby 55 mW; low voltage disconnect & transient protection.
- Dimensions & Weight: 118 × 39 × 98 mm (4.6 × 1.5 × 3.9 in, incl. connectors); ~522 g (1.15 lb) with Wi-Fi.
- Environmental: IP64; -40°C to +75°C operating; MIL-STD-810H; high humidity tolerance.
- Certifications: FCC, IC/ISED, PTCRB, GCF, CE/RED/RCM; carriers (AT&T, FirstNet, T-Mobile, Verizon, etc.); public safety (FirstNet Trusted, T-Priority); rail/hazardous/vehicle standards.
