AirLink® RV55
Compact Industrial 4G LTE Router
The Semtech AirLink RV55 is a rugged, ultra-low-power 4G LTE router (Cat-4 or Cat-12 variants) built for mission-critical fixed and mobile applications in harsh or remote environments. It delivers reliable connectivity (up to 600 Mbps DL / 150 Mbps UL in Cat-12 models) with optional Wi-Fi 5 and GNSS, while consuming minimal power, making it perfect for solar/battery-powered deployments in utilities, SCADA, oil & gas, precision agriculture, public safety, and critical infrastructure. Featuring IP64-rated metal construction, industrial-grade durability (-40°C to +70°C, MIL-STD-810G), dual SIM redundancy, advanced edge processing, robust security, and included AirLink Complete cloud management, the RV55 ensures secure, cost-effective, and easily managed LTE performance for demanding IoT and enterprise use cases.
Ultra Low Power 4G Router
The Semtech AirLink RV55 is a compact, rugged industrial-grade 4G LTE router optimized for mission-critical fixed and mobile applications in harsh or remote environments. It provides reliable primary or backup connectivity with ultra-low power consumption, making it ideal for solar/battery-powered deployments where traditional power sources are unavailable or costly.
Available in LTE Cat-4 (up to 150 Mbps DL / 50 Mbps UL) or LTE-A Pro Cat-12 (up to 600 Mbps DL / 150 Mbps UL) variants, the RV55 features optional dual 1×1 Wi-Fi 5 (dual-band 2.4/5 GHz), 1x Gigabit Ethernet, single/dual serial (RS-232), GNSS for precise location tracking, and dual SIM slots for redundancy/failover. It supports advanced networking (NAT, VLAN, QoS, policy routing), VPN (IPsec/GRE/OpenVPN), stateful firewall, and edge processing capabilities.
The RV55 is built tough with an IP64-rated sealed metal enclosure, MIL-STD-810G compliance for shock/vibration/thermal/humidity, wide temperature range (-40°C to +70°C), and vehicle-grade power resilience (7–36 VDC input, low voltage disconnect, ignition sense, transient protection up to +200 VDC/-600 VDC). It is FirstNet Trusted (select models) and carrier-approved for public safety, utilities, oil & gas, precision agriculture, SCADA/metering, and critical infrastructure.
Management is simplified via AirLink Complete (1-year included): cloud-based AirLink Management Service (ALMS) for remote monitoring/configuration/firmware updates, 24/7 support, hardware warranty extension (up to 5 years), and critical updates through at least 2029+. Optional AirLink Premium adds advanced reporting and advance replacement.
- Ultra-Low Power Consumption Extremely efficient design (~900 mW idle in similar models) enables long-term operation on solar, battery, or remote power sources — ideal for off-grid and energy-constrained deployments.
- High-Performance LTE Options Available in Cat-4 (150 Mbps DL / 50 Mbps UL) or Cat-12 (600 Mbps DL / 150 Mbps UL) variants — delivers fast, reliable broadband for demanding IoT and enterprise applications.
- Rugged & Harsh-Environment Ready IP64-rated sealed metal enclosure, MIL-STD-810G compliant, wide -40°C to +70°C operating range, and vehicle-grade power protection — built to survive extreme conditions, vibration, dust, and moisture.

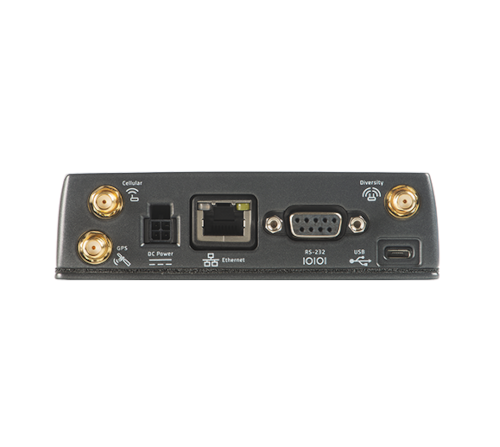

- Flexible Connectivity Options 1× Gigabit Ethernet, single/dual serial (RS-232), optional dual 1×1 Wi-Fi 5, GNSS for location tracking, and dual SIM slots — supports legacy equipment, redundancy, failover, and precise positioning.
- Advanced Edge Processing ALEOS Application Framework (AAF) allows custom IoT data handling, filtering, and automation directly at the edge — reduces cloud traffic and latency.
- Robust Security & Networking Stateful firewall, IPsec/GRE/OpenVPN (up to 5 tunnels), remote authentication (LDAP/RADIUS/TACACS+), QoS, VLAN, policy routing, and NAT — ensures secure, optimized traffic in mission-critical networks.
- FirstNet Trusted & Carrier-Approved Certified for public safety use (select models) and approved by major carriers (AT&T, Verizon, T-Mobile) — trusted for emergency response, utilities, and critical infrastructure.
- Included AirLink Complete Subscription 1-year cloud management via AirLink Management Service (ALMS), 24/7 support, hardware warranty extension (up to 5 years), and critical firmware updates — simplifies remote deployment and ongoing management.
- Cost-Effective for Remote & Fixed Assets Low power + rugged design lowers total cost of ownership for utilities, SCADA/metering, oil & gas, precision agriculture, public safety, and remote monitoring applications.
- Public safety/first responders
- Utilities & SCADA/metering
- Oil & gas
- Precision agriculture
- Remote monitoring & critical infrastructure
- Protected fixed/mobile assets in harsh locations
- Cellular: LTE Cat-4 or Cat-12 (global/regional bands incl. FirstNet Band 14)
- Wi-Fi (optional): Dual 1×1 Wi-Fi 5
- Ports: 1x GE Ethernet, single/dual serial, GNSS
- Power: Ultra-low (~900 mW idle in similar models) with protection features
- Environmental: IP64, -40°C to +70°C, MIL-STD-810G
- Certifications: FCC/IC/PTCRB/GCF/CE/RCM; carrier approvals (AT&T, Verizon, etc.); FirstNet Trusted (LTE-A Pro)
