AirLink® RV50X
Ultra-low Power Rugged 4G Router
The Semtech AirLink RV50X is an ultra-compact, ultra-low-power Cat-6 LTE router for remote fixed assets and industrial IoT in harsh or off-grid environments. It delivers up to 300 Mbps downlink / 50 Mbps uplink with ~900 mW idle power consumption, making it perfect for solar/battery deployments in utilities, SCADA, oil & gas, smart agriculture, and smart cities. Rugged IP64 metal design, wide -40°C to +70°C range, Gigabit Ethernet, RS-232, USB, dual SIM redundancy, GNSS, edge processing (ALEOS AAF), strong security, and included AirLink Complete cloud management ensure reliable, cost-effective connectivity for hard-to-reach locations.
Ultra Low Power 4G Router
The Semtech AirLink RV50X is an ultra-low-power, rugged Cat-6 LTE router designed for critical remote fixed assets and industrial IoT infrastructure in harsh or off-grid environments. It delivers reliable broadband connectivity (up to 300 Mbps downlink / 50 Mbps uplink) with exceptional energy efficiency, making it ideal for battery, solar, or low-power deployments where traditional solutions like fiber or landlines are impractical or costly.
This industrial-grade gateway features a compact, IP64-rated metal enclosure for dust and water resistance, wide operating temperature (-40°C to +70°C), MIL-STD-810G compliance for shock/vibration/thermal/humidity, and superior power protection (7–36 VDC input, low voltage disconnect, ignition sense, transient tolerance up to +200 VDC/-600 VDC). It includes 1x Gigabit Ethernet port, single RS-232 serial, USB 2.0, GNSS (12-channel GPS/GLONASS with <2m accuracy), and dual Nano-SIM slots for redundancy/failover.
Advanced capabilities encompass secure VPN (IPsec/GRE/OpenVPN up to 5 tunnels), stateful firewall, remote authentication (LDAP/RADIUS/TACACS+), policy-based routing, QoS, NAT/port forwarding, IPv6 support, and edge processing via ALEOS Application Framework (AAF) for custom IoT data handling. Management is streamlined with AirLink Complete (1-year included): cloud-based AirLink Management Service (ALMS) for remote monitoring/configuration/updates, 24/7 support, hardware warranty (extendable to 5 years), and critical firmware updates through at least 2029+. Optional AirLink Premium adds advanced reporting, advance replacement, and tracker widget.
- Ultra-Low Power Consumption — Operates at ~900 mW idle and ~53 mW standby; ideal for battery, solar, or off-grid deployments, reducing infrastructure costs and enabling remote locations without power upgrades.
- High-Performance LTE Connectivity — Cat-6 LTE with up to 300 Mbps downlink / 50 Mbps uplink; global band support and 3G fallback provide reliable broadband for critical IoT and fixed assets.
- Rugged Industrial Design — IP64-rated sealed metal enclosure; MIL-STD-810G compliant for shock, vibration, thermal shock, and humidity; wide -40°C to +70°C operating range and Class 1 Div 2 hazardous location certification for harsh environments.
- Advanced Positioning — Integrated 12-channel GNSS (GPS/GLONASS) with <2m accuracy for precise asset tracking and location-based services.

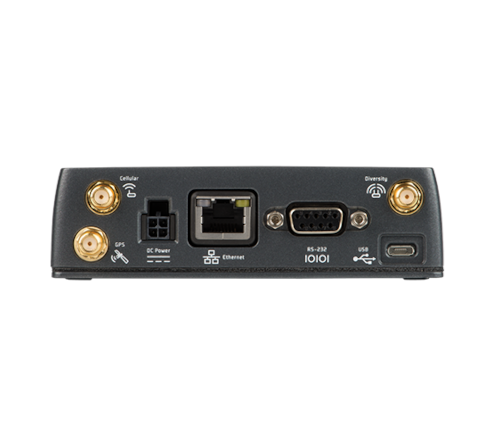

- Flexible Interfaces — 1x Gigabit Ethernet (1 Gbps), RS-232 serial, USB 2.0, configurable I/O, and dual Nano-SIM slots for redundancy, failover, and legacy/modern device integration.
- Intelligent Edge Processing — ALEOS Application Framework (AAF) with LUA scripting enables custom IoT data pre-processing, filtering, and automation at the edge.
- Robust Security & Networking — Stateful firewall, IPsec/GRE/OpenVPN (up to 5 tunnels), remote authentication (LDAP/RADIUS/TACACS+), QoS, policy routing, NAT, VLAN, and IPv6 support for secure, optimized traffic.
- Remote Cloud Management — AirLink Complete subscription (1-year included) provides AirLink Management Service (ALMS) for remote monitoring, configuration, firmware updates, 24/7 support, and warranty extension up to 5 years.
- Cost-Effective & Future-Proof — Lowers connectivity costs vs. fiber/landlines; maximizes ROI for remote assets in utilities, oil & gas, public safety, SCADA/metering, smart agriculture, environmental monitoring, and smart city infrastructure.
- Utilities & SCADA/metering
- Oil & gas
- Public safety & remote monitoring
- Smart agriculture & environmental sensing
- Smart city infrastructure
- Off-grid or harsh fixed IoT deployments
- Cellular: LTE Cat-6 (global bands; North America/EMEA or Asia Pacific variants); 3G fallback
- Power Consumption: LTE Idle ~900 mW; Standby ~53 mW
- Dimensions: 119 × 34 × 85 mm (4.69 × 1.34 × 3.35 in)
- Weight: Approx. 320 g
- Certifications: FCC/IC/PTCRB/GCF/CE/RCM; carrier approvals (AT&T, Verizon, T-Mobile, etc.); Class 1 Div 2 hazardous locations
