PDX

All-in-one rugged solution for instant, unbreakable connections anywhere.

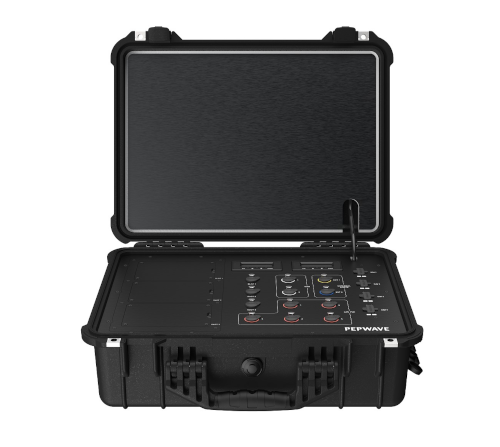

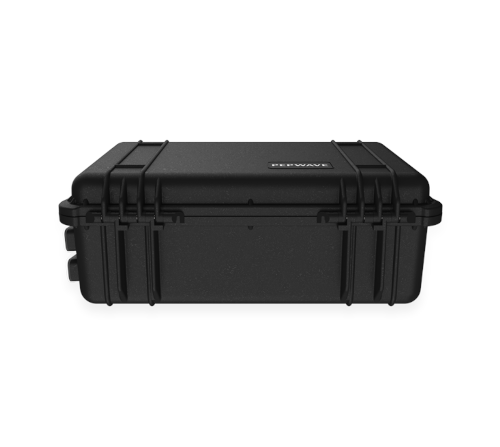

The PDX integrates a quad-cellular (or dual 5G in newer variants) router, embedded antennas (cellular, GPS, Wi-Fi), and optional battery power into a tough, military-grade Pelican-style enclosure. It delivers reliable high-speed connectivity using multiple cellular providers for bandwidth bonding, failover, and coverage in blind spots. Ideal for scenarios requiring quick setup without fixed infrastructure, it supports SpeedFusion technology for secure, low-latency VPN bonding and InControl 2 cloud management.

Rapid Deployment for Public Safety

Deployable within minutes, the PDX offers Public Safety personnel the ability to immediately establish stable and secure communications to headquarters from any emergency site. Equipped with built-in interfaces for WAN, LAN, and Wi-Fi, as well as antennas for cellular and GPS, the PDX can be used in remote and volatile situations.

Instant Connectivity for Temporary Sites

The PDX provides you with rapid deployment connectivity from the moment boots hit the ground. Combining the bandwidth of up to 4x Gigabit LTE connections, the PDX provides fast and reliable connectivity regardless of site location. Quickly and safely transmit project data, emails, plans, and blueprints between personnel, sites, and headquarters.

Event Live Streaming and Connectivity

Keep your event connected and your cameras streaming. The PDX supports 4x Gigabit LTE connections to keep your event connected no matter where it is held. With 7x 802.3af PoE ports, you can simplify your cabling when connecting and powering your devices. The PDX comes with a 802.11ac Wi-Fi which supports a customizable captive portal with advertisements.

InControl 2. Powerful Cloud Management Platform

PDX is supported by InControl 2, Peplinks Cloud-Based SD-WAN Network Management Platform. Setup SpeedFusion networks, make bulk configuration changes, determine Firmware policy, build a custom captive portal. Do all this and more remotely using the InControl 2.

• Quad embedded LTE-A modems (or dual 5G) with redundant SIM slots (up to 8 SIMs total) for multi-carrier bonding, failover, and data protection
• Rugged MIL-STD-810H certified (7.7G vibration resistance), IP55 (IP65 testing in progress), wide -40°C to +45°C operating range
• Optional battery kit for up to 9 hours of untethered operation
• Up to 7x 802.3at PoE LAN ports to power cameras, access points, or devices directly
• SpeedFusion VPN: Bandwidth bonding, hot failover, WAN smoothing for jitter-free performance
• Dual-band Wi-Fi (802.11ac, 1166 Mbps, 2×2 MIMO) with simultaneous WAN/AP mode and customizable captive portal
• Intelligent load balancing, advanced QoS, full VPN suite (IPsec, OpenVPN, PPTP), IPv6, VLAN, DoS prevention
• InControl 2 cloud management for remote configuration, monitoring, and firmware updates
• Embedded antennas (8x cellular, 4x Wi-Fi, 1x GPS) for true all-in-one portability
• OLED status display for quick field checks

• Public safety/emergency response: Rapid setup at incident sites for secure HQ comms
• Temporary construction/remote sites: Instant data transfer for blueprints, emails, and monitoring
• Live event streaming: Bond multiple cellular links for reliable 4K/video feeds
• Disaster recovery/field operations: Battery-powered, rugged connectivity in no-infrastructure areas
• Mobile command posts or pop-up networks needing PoE-powered devices

• Embedded Cellular Modems: 4x LTE-A (CAT-12 or CAT-20 variants) or 2x 5G (Sub-6 GHz NSA/SA)
• Cellular Data Rates (per modem/theoretical max): LTE CAT-12: 600 Mbps down / 150 Mbps up; 5G: up to 3.4 Gbps down / 900 Mbps up
• WAN Interfaces: 2x GE Ethernet (configurable WAN/LAN)
• LAN Interfaces: 7x GE Ethernet (up to 7x 802.3at PoE), 1x USB (power output)
• Wi-Fi: 802.11ac/a/b/g/n, 1166 Mbps, dual-band simultaneous, Wi-Fi WAN/AP
• Router Throughput: 2.5 Gbps
• SpeedFusion VPN Throughput: 600 Mbps (no encryption), 500 Mbps (256-bit AES)
• Recommended Users: 50–500
• Antennas: All internal/embedded (8x cellular, 4x Wi-Fi, 1x GPS)
• Power Input: DC 12–56V, AC 100–240V
• Power Consumption: 38W max (without PoE load)
• Dimensions: 19.7 × 14.8 × 7.7 inches (500 × 375 × 195 mm) approx.
• Weight: ~35 lb (15.9 kg)
• Operating Temperature: -40°F to 113°F (-40°C to 45°C)
• Humidity: 15–95% non-condensing
• Certifications: FCC, CE, IC, MIL-STD-810H (vibration), IP55/65, carrier approvals (FirstNet pending/review, Verizon pending on select models)
