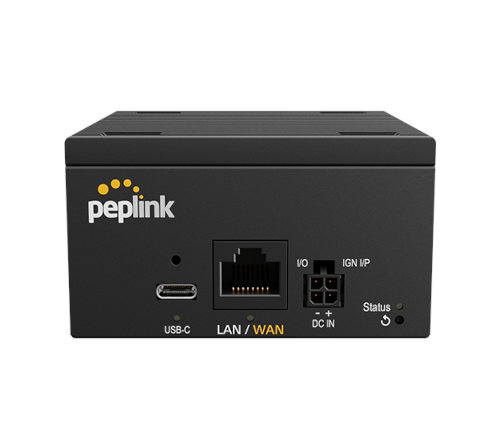

MAX BR2 Micro
The Peplink MAX BR2 Micro is an ultra-compact, dual-cellular LTE router designed for unbreakable connectivity in the smallest possible footprint.
Smaller than a stack of 3 decks of cards, the BR2 Micro delivers reliable routing with dual embedded LTE modems, convertible Ethernet WAN/LAN port, USB-C LAN interface (virtual Ethernet via AX88179 chipset), built-in GPS, GPIO, ignition sensing, and SpeedFusion technology (Hot Failover, Smoothing, Bandwidth Bonding with PrimeCare subscription). It supports zero-touch provisioning via built-in eSIM, Peplink InControl 2 cloud management, InTouch remote access, and rugged metal enclosure for confined spaces, mobile, industrial, or mass deployments. Ideal for applications needing lightweight, flexible power (USB-C or DC), and high reliability without taking up space.
- Dual embedded LTE modems with Nano-SIM slots (plus Peplink eSIM, BYO eSIM up to 2 profiles per modem, FusionSIM, RemoteSIM support)
- 1x 10/100/1000M Ethernet WAN/LAN (configurable)
- 1x USB-C LAN (virtual Ethernet connectivity for any device/OS with drivers)
- SpeedFusion VPN: Hot Failover, Smoothing, Bandwidth Bonding (2/5 peers; requires PrimeCare, complimentary first year on PRM models)
- Integrated GPS for location tracking and fleet management via InControl 2
- GPIO and ignition sensing for vehicle/mobile use
- Advanced networking: Load balancing (multiple algorithms), QoS, stateful firewall, DoS prevention, VLAN, NAT types, port forwarding, captive portal, Dynamic DNS
- Security: 256-bit AES encryption, IPsec VPN compatibility
- Remote management: InControl 2 cloud, web/CLI, SNMP, email alerts, bandwidth stats
- Rugged: Fanless metal enclosure, wide temp range, EN 61000 EMC compliance
- Confined spaces: ATMs, kiosks, vending machines, power banks, industrial enclosures
- Mobile/vehicular: Dash cams, telemetry, fleet tracking (ignition sensing prevents battery drain)
- Remote/industrial: SCADA, monitoring in harsh or tight locations
- Mass deployments: Zero-touch eSIM provisioning, InControl management for scalability
- Starlink extension: Ethernet WAN for backup/hybrid connectivity
- Embedded Cellular Modems: 2x LTE (CAT-4/7/12 variants); fallback to 3G
- Cellular Data Rates (Theoretical Max): CAT-4: 150 Mbps down / 50 Mbps up; CAT-7: 300 Mbps down / 150 Mbps up; CAT-12: 600 Mbps down / 150 Mbps up
- WAN Interfaces: 1x GE Ethernet (WAN/LAN configurable), USB-C (virtual Ethernet)
- LAN Interfaces: Configurable via WAN port (1x GE when set as LAN)
- Wi-Fi: None (no Wi-Fi WAN/AP)
- Router Throughput: 300 Mbps
- SpeedFusion VPN Throughput: 80 Mbps (no encryption), 60 Mbps (256-bit AES)
- Recommended Users: 1–60

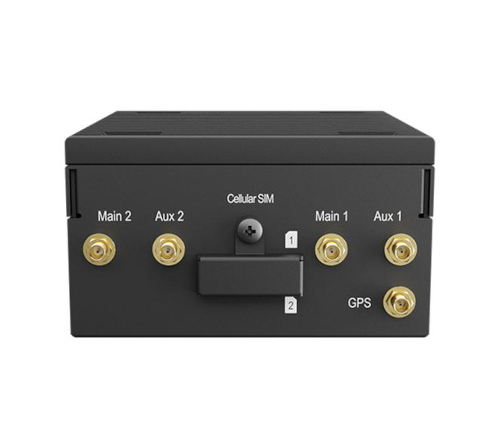

- Antenna Connectors: 4x MMCX (cellular), 1x MMCX (GPS)
- Power Input: 10–30V DC (4-pin Micro-Fit connector), USB-C (min. 9V), AC adapter (100–240V to 12V)
- Power Consumption: 8W nominal, 13W max
- Dimensions: 2.99 × 3.25 × 1.69 inches (76 × 83 × 43 mm)
- Weight: 0.77 lb (350 g)
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Humidity: 15–95% non-condensing
- Certifications: FCC, CE, RoHS, EN 61000 EMC; US carrier certs (AT&T, T-Mobile, Verizon, FirstNet on NA models)
