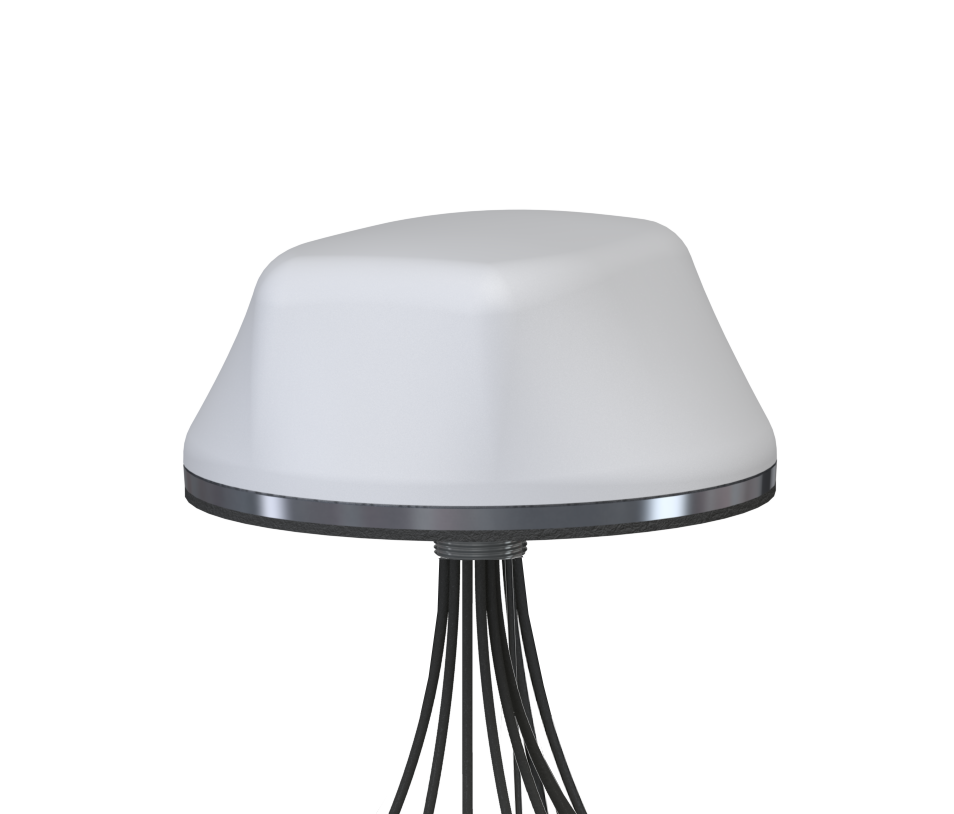

LTM Series

The LTM Series includes low-profile, dome-style antennas purpose-built for mobile
cellular applications. The compact dome housing and available magnetic mounting
options make the LTM Series well-suited for vehicle-based deployments where ease of
installation, durability, and low visual impact are important. LTM antennas are available
in cellular-only and cellular-plus-GNSS configurations, supporting modern LTE and 5G
networks across a wide range of mobile router platforms. Commonly used in fleet, utility,
and public safety vehicles operating in demanding environments.

• Radome dimensions 5.50″; (139 mm) diameter ×
  2.38″; (60 mm) height; magnetic mount adds
  0.50″; (12.7 mm) to height

•  Supports LTE and 5G cellular networks in
  cellular-only and multi-radio configurations,
  including WiFi and GNSS

•  Standard thru-hole mounting with 7/8″; (22 mm)
  feed-through and 3/4″; (19 mm) thread for up to
  1/2″; (12.7 mm) thick surfaces; magnetic mount
  option available

•  Rugged ASA UV-inhibitive plastic radome with
  corrosion-resistant aluminum base; available in
  black or white

•  Designed to meet IEEE-1478, EN 61373, MIL-
  810G, and TIA-329.2-C shock and vibration
  standards

•  Dust and water ingress rated IP69K for stud
  mount and IP67 for magnetic mount when
  properly mounted

•  Operating temperature range from −40 °C to
  +80°C

•  50-ohm impedance

•  RoHS compliant
