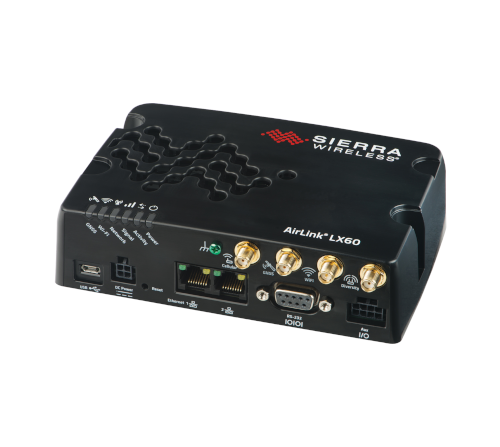

AirLink® LX60
Dual Ethernet LTE Router
The Semtech AirLink LX60 is a compact dual-Ethernet LTE router for secure, out-of-the-box primary or backup connectivity in enterprise and IoT applications. It delivers up to 150 Mbps DL / 50 Mbps UL (Cat-4), with optional LTE-M/NB-IoT for deep coverage, dual Gigabit Ethernet, RS-232/RS-485, configurable I/O, and optional Wi-Fi + GNSS.
Ideal for ATMs, kiosks, POS, digital signage, taxis, and building automation in protected indoor/outdoor settings, it supports edge processing via ALEOS Application Framework (AAF) and meets shock/vibration/vehicle standards with FirstNet Trusted certification.
AirLink Complete (included) provides cloud management, 24/7 support, and firmware updates. The LX60 offers industrial reliability and easy deployment in a small, versatile package.
Dual Ethernet 4G LTE Router for Retail, Fleet, and IoT
The Semtech AirLink LX60 is a compact, dual-Ethernet 4G LTE router designed for secure, high-performance primary and backup connectivity in enterprise, retail, fleet, and IoT applications. It excels in protected indoor or cabinet-based deployments such as ATMs, kiosks, POS terminals, taxis, fleet vehicles, and remote IoT infrastructure, offering out-of-the-box simplicity for same-day operations and reliable business continuity.
This router provides Cat-4 LTE speeds of up to 150 Mbps download / 50 Mbps upload, with optional single 1×1 Wi-Fi 5 (dual-band 2.4/5 GHz, supporting up to 10 clients in AP or client mode with WPA2 Enterprise) and optional GNSS for location tracking. It features 2x Gigabit Ethernet ports, a single RS-232 serial port, configurable I/O, USB 2.0, and advanced networking capabilities including NAT, VLAN, policy routing, QoS, IPsec/GRE/OpenVPN (up to 5 tunnels), stateful firewall, and remote authentication (LDAP/RADIUS/TACACS+).
Built for industrial reliability, the LX60 meets MIL-STD-810G standards for shock, vibration, thermal, and humidity resistance, carries an IP20 rating, supports wide power input (7–36 VDC) with low voltage disconnect, ignition sense, and transient protection, and operates from -20°C to +65°C. It is FirstNet Trusted and carrier-approved in key regions (AT&T, Verizon, T-Mobile in North America; regional variants for EMEA and Australia/New Zealand).
Management is simplified via AirLink OS (local web UI, AT commands, SNMP, SMS) and AirLink Complete (1-year included subscription: AirLink Management Service for remote cloud monitoring/configuration, 24/7 support, hardware warranty extendable to 5 years, critical firmware updates through at least December 31, 2029). Optional AirLink Premium adds advanced mobility reporting, advance replacement, and tracker widget features.
Secure, dual-Ethernet LTE connectivity in a compact, industrial-grade package — perfect for enterprise IoT and retail/fleet reliability.
- Dual Gigabit Ethernet Ports — Enables secure, high-speed wired connections for multiple devices or network segmentation; ideal for ATMs, kiosks, POS terminals, and fleet applications.
- High-Performance LTE Connectivity — Cat-4 speeds up to 150 Mbps download / 50 Mbps upload, with optional LTE-M/NB-IoT variants for superior deep-building, remote, and low-bandwidth IoT coverage.
- Optional Wi-Fi 5 + GNSS — Single 1×1 dual-band Wi-Fi (2.4/5 GHz) supports up to 10 clients as hotspot or WAN; integrated GNSS provides precise location tracking for vehicles and mobile assets.
- Serial & I/O Flexibility — RS-232/RS-485 serial ports plus configurable digital/analog I/O for seamless integration with legacy equipment, sensors, and industrial devices.
- Industrial-Grade Reliability — MIL-STD-810G compliant for shock, vibration, thermal, and humidity; wide -20°C to +65°C operating range and vehicle power features (ignition sense, transient protection) ensure uninterrupted operation in harsh or mobile environments.
- Advanced Security & Networking — Stateful firewall, IPsec/GRE/OpenVPN (up to 5 tunnels), remote authentication (LDAP/RADIUS/TACACS+), QoS, VLAN, policy routing, and NAT for secure, optimized traffic management.
- Intelligent Edge Processing — ALEOS Application Framework (AAF) with LUA scripting allows custom IoT data pre-processing, filtering, and automation at the edge.
- Remote Cloud Management — AirLink Complete subscription (1-year included) provides AirLink Management Service (ALMS) for remote monitoring, configuration, 24/7 support, firmware updates, and warranty extension up to 5 years.
- FirstNet Trusted & Carrier-Approved — Certified for public safety and major carriers (AT&T, Verizon, T-Mobile in NA), ensuring reliable performance in mission-critical scenarios.
- Retail and branch locations (ATMs, kiosks, POS terminals, digital signage)
- Fleet vehicles (taxis, light commercial trucks)
- Building automation and smart infrastructure
- Protected indoor or semi-exposed fixed assets
- IoT and M2M applications requiring serial/RS-232/RS-485 connectivity
- Environments needing dual Ethernet for network segmentation or redundancy
- Public safety and enterprise sites with FirstNet Trusted requirements
- Cellular — LTE Cat-6 or LTE-A Pro Cat-12; global/NAM/APAC/EMEA bands; dual SIM redundancy
- Wi-Fi (optional) — Dual 1×1 Wi-Fi 5 (433 Mbps theoretical, dual-band 2.4/5 GHz)

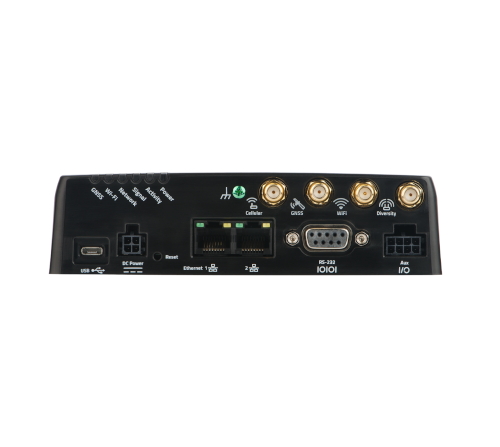

- Ports — 2× Gigabit Ethernet (LAN/WAN switchable), single/dual RS-232 serial, configurable I/O, USB 2.0
- GNSS — 48-channel multi-constellation (GPS/GLONASS/BeiDou/Galileo)
- Throughput — Up to 300 Mbps downlink / 150 Mbps uplink (Cat-12 models)
- Power — 7–36 VDC input; ultra-low consumption with protection features
- Environmental — -20°C to +65°C operating range; MIL-STD-810G compliant; IP20 rating
- Certifications — FCC/IC/PTCRB/GCF/CE/RCM; FirstNet Trusted (select models); carrier approvals
- Management — AirLink OS + AirLink Complete (1-year included) for cloud management, 24/7 support, firmware updates, and warranty extension
- Edge Processing — ALEOS Application Framework (AAF) with LUA scripting for custom IoT logic
