MAX BR1 IP67
Industrial-Grade Outdoor 4G LTE Router
The Pepwave MAX BR1 IP67 is a compact, ultra-rugged single-cellular outdoor LTE router built for harsh environments. Encased in a fully waterproof and dust-tight IP67-rated enclosure, it delivers reliable 4G connectivity with automatic failover, PoE power simplicity, and built-in GPS — ideal for remote sites, industrial applications, and mission-critical deployments where weather, vibration, and exposure are concerns.

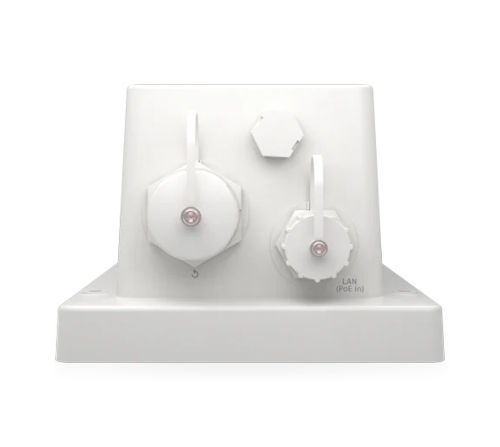

Compact Super-Duty IP67 Enclosure
The BR1 IP67 outdoor router is as small as it is tough. It has a waterproof IP67 enclosure that stands up to dust, vibration, and inclement weather.
PoE Input
Cut down on cabling and simplify deployments. The BR1 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. For non-PoE enabled Ethernet cables, the 802.af PoE Injector is available as a separate accessory.
SpeedFusion Hot Failover
In case of Wi-Fi or cellular WAN failure, the BR1 IP67 supports Hot Failover between the Wi-Fi and cellular WAN connections, giving you session persistence for uninterrupted productivity.

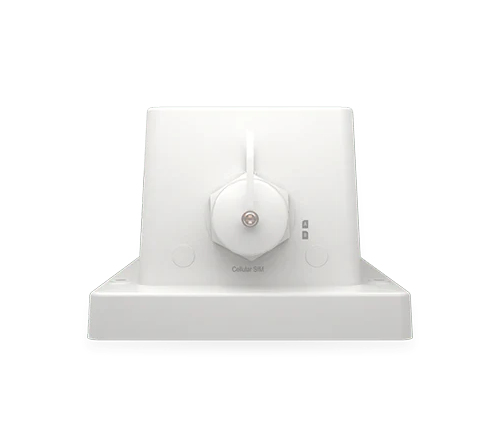

Redundant SIM Slots
Redundant SIM slots with automatic switching for reliable connectivity. You can also set the MAX BR1 IP67 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected
- Extreme Durability — IP67 waterproof/dust-protected metal enclosure withstands inclement weather, lightning strikes, vibration, and temperature extremes.
- PoE-Powered Simplicity — Supports 802.3af PoE input — one cable handles both power and data (PoE injector available as accessory).
- Embedded LTE Modem — Reliable CAT-4 or CAT-6 cellular (up to 300 Mbps DL / 50 Mbps UL in CAT-6 variants) with redundant SIM slots for automatic failover and data plan optimization.
- Redundant SIM Switching — Seamless carrier failover, data cap management, and border-crossing without manual intervention.
- Built-in GPS — Location tracking and fleet management via InControl cloud platform.
- SpeedFusion Ready — Optional license for Hot Failover, WAN Smoothing, and Bandwidth Bonding for unbreakable, resilient links.
- Advanced Security & Networking — Stateful firewall, DoS prevention, IPsec VPN, PepVPN, QoS, VLAN, NAT, port forwarding, and web filtering.
- Cloud Management — Full remote control, monitoring, and alerts through InControl platform.
- Harsh outdoor and industrial environments (oil & gas, supply vessels, drillships).
- Remote monitoring, surveillance, and IoT deployments.
- Temporary pop-up sites, cellular extension, and data overage protection.
- Public safety, emergency response, and utility applications requiring always-on connectivity.
- Router Throughput: 100 Mbps
- WAN Interface: 1x Waterproof Ethernet (802.3af PoE input)
- LAN: Configurable via software (typically bridged or switch mode)
- Cellular: Embedded LTE (CAT-4/CAT-6 variants); multiple regional bands:
- Europe/International (LTE-E): B1/B3/B5/B7/B8/B20/B38/B40/B41
- Americas/Europe (LTEA-W): B1–B5/B7/B8/B12/B13/B20/B25/B26/B29/B30/B41
- Asia Pacific (LTEA-P): B1/B3/B5/B7/B8/B18/B19/B21/B28/B38/B39/B40/B41
- 3G fallback (HSPA+/DC-HSPA+)
- Antenna Connectors: 2x SMA Cellular + GPS support
- Power: 802.3af PoE; optional Ethernet power plug (ACW-657)
- Dimensions: Compact design (exact: approx. 147 × 128 × 40 mm in similar models)
- Operating Temperature: Wide range (typically -40°C to +65°C)
- Environmental: IP67, lightning immune, vibration-resistant
- Certifications: FCC, CE, RoHS
