Digi IX40
5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0
The Digi IX40 is a 5G edge computing industrial IoT cellular router solution purpose-built for Industry 4.0, enabling rapid processing, analysis, and integration of industrial asset data on public and private 5G networks.
The Digi IX40 combines high-performance 5G (NSA/SA) or 4G LTE connectivity with integrated edge computing (containerized apps via Digi Containers), CBRS/private 5G support, and Digi SureLink® for persistent, resilient links. It features dual SIM failover, GNSS, multiple Ethernet/SFP ports, serial/I/O for industrial integration (Modbus bridging), advanced routing/security, and centralized management via Digi Remote Manager® (included in Digi 360). Rugged C1D2-rated enclosure suits harsh environments, with license-free enterprise software for VPN, firewall, and more. It optimizes OT/IT convergence for predictive maintenance, automation, and critical applications.
- Global 5G NSA/SA and LTE support (Cat 19 4×4 MIMO in 5G models) with major carrier certifications (PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon)
- Integrated edge computing: Host containerized applications and custom solutions on 1.6 GHz quad-core processor
- Resilient connectivity: Digi SureLink®, VRRP+, dual Nano-SIM slots, optional Digi eSIM for remote carrier switching
- Interfaces: 4x Gigabit Ethernet, 2x SFP (1 Gb), RS-232/422/485 serial, 2x digital I/O, 2x analog inputs (0-10V/4-20mA), Modbus bridging
- GNSS receiver: Multi-constellation (GPS, GLONASS, BeiDou, Galileo) for location tracking
- Security: Digi TrustFence® (FIPS 140-2 compliant), stateful firewall, VPN (IPsec/OpenVPN), authentication, logging
- Advanced routing: RIP/RIPng, OSPF, BGP, VRRP, IP pass-through, GRE, multicast
- Cloud/local management: Digi Remote Manager® (zero-touch, monitoring, updates), Web UI/CLI, SNMP, PCAP analyzer
- Value-added: Digi WAN Bonding (aggregation/failover), Digi Containers for edge apps
- Rugged: C1D2 hazardous location rated, IP30 enclosure, DIN rail/shelf mount
- Predictive maintenance and asset monitoring in manufacturing/utilities
- Machine learning/advanced robotics and process automation
- Precision monitoring/control in energy/smart cities
- Industrial automation and Industry 4.0 deployments
- Critical infrastructure requiring resilient 5G/LTE and edge intelligence
- Public safety/emergency response (FirstNet Capable™ models)
- Cellular Modem:
- IX40-05: 5G NSA/SA + LTE-Advanced Pro Cat 19 (4×4 MIMO) + 3G fallback; extensive 5G NR (n1–n79 incl. CBRS n48) and LTE bands (B1–B71 incl. FirstNet B14)
- IX40-04: 4G LTE-Advanced Pro Cat 12 + 3G HSPA+; broad LTE bands (B1–B71 incl. CBRS B48)
- Data Rates (Theoretical Max): 5G: multi-Gbps (network-dependent); LTE Cat 19: up to 1.6 Gbps down / 150 Mbps up; Cat 12: up to 600 Mbps down / 150 Mbps up
- SIM Slots: 2x Nano-SIM (4FF)

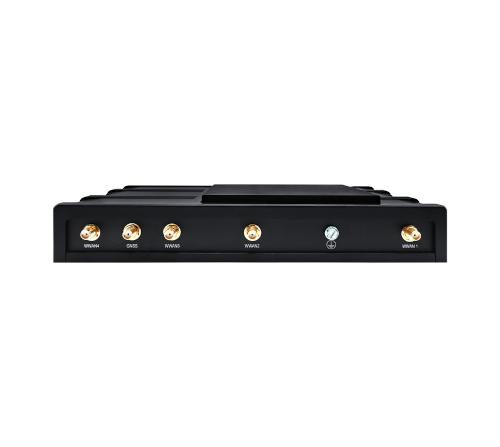

- Antenna Connectors: 2 or 4x SMA (cellular, 50 Ω); 1x SMA (GNSS)

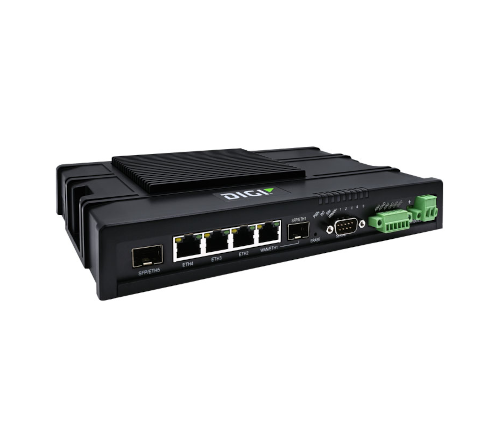

- Ethernet Ports: 4x RJ-45 10/100/1000 Mbps (auto-sensing, configurable WAN/LAN)
- SFP Ports: 2x 1 Gb capable
- Serial Port: 1x RS-232/422/485 (DB-9 male DTE)
- I/O: 2x digital inputs/outputs; 2x analog inputs (12-bit, 0-10 V / 4-20 mA)
- Processor/Memory: 1.6 GHz quad-core i.MX 8M Plus ARM Cortex-A53; 1 GB RAM / 8 GB flash
- Power Input: 12–30 VDC (screw-down terminal block), reverse polarity protection
- Power Consumption: 4.5 W (light traffic), 8 W (peak), 3.5 W (idle)
- Dimensions: 9.21 × 6.06 × 1.61 inches (234 × 154 × 41 mm)
- Weight: 2.51 lb (1.14 kg)
- Enclosure: Glass-filled polyphenylene sulphide, IP30
- Operating Temperature: -40°F to 167°F (-40°C to 75°C); reduced cellular performance above 158°F (70°C)
- Humidity: 5–95% non-condensing
- Certifications: PTCRB, AT&T/FirstNet Capable™, T-Mobile, Verizon; IEC 62368-1 safety, FIPS 140-2, FCC/CE/UKCA/RCM emissions, Class 1 Div 2 hazardous locations
