S700 Series
Semi-ruggedized LTE and security appliance for IoT deployments

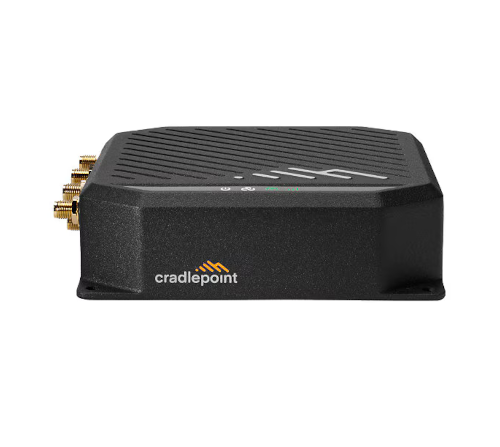

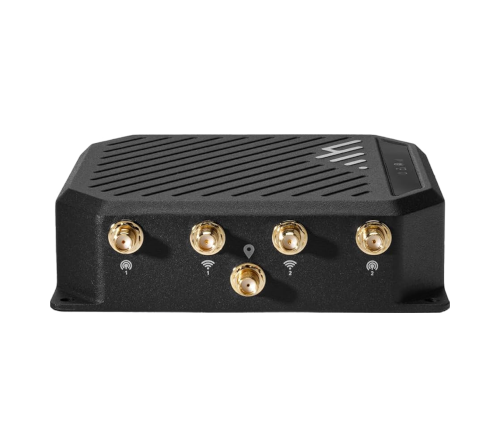

The Ericsson Cradlepoint S700 Series is a semi-ruggedized LTE and security appliance built for IoT deployments, delivering reliable, cloud-managed connectivity for high-availability portable or fixed applications such as surveillance cameras, digital signage, oil & gas monitoring, and parallel networking. It features Cat 4 LTE WAN (up to 150 Mbps DL / 50 Mbps UL), dual-band concurrent Wi-Fi 6 (802.11ax), 2x GbE Ethernet ports (LAN/WAN switchable), active GNSS for asset location/geofencing, and a metal form factor with wide -20°C to +60°C operating range for harsh environments.
The Ericsson Cradlepoint S700 semi-ruggedized router for IoT networks as a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 is available with IoT Ericsson NetCloud Service plans, which provide features optimized for each unique deployment.
Semi-Ruggedized IoT Solution
When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.
Advanced, Cloud-Managed IoT Solution
For organizations requiring robust connectivity for IoT networks — with installed routers numbering from hundreds to many thousands — Ericsson’s NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Ericsson’s NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.
- Reliable LTE Connectivity — Cat 4 modem with dual SIM support — ensures redundant, secure cellular access for IoT and edge devices.
- Wi-Fi 6 Performance — Dual-band, dual-concurrent 802.11ax — provides optimal wireless coverage and multi-device connectivity.
- Semi-Rugged Durability — Metal enclosure with vibration resistance and wide temperature tolerance — suitable for industrial, semi-exposed, or portable use.
- Zero-Trust Security — Integrated NetCloud Exchange (NCX) with zone-based firewall, zero-trust WAN architecture — protects traffic and simplifies secure networking.
- Unified Cloud Management — Ericsson NetCloud Service for IoT — enables zero-touch deployment, centralized policy control, real-time monitoring, live stats, analytics, bulk updates, and remote troubleshooting.
- Extensibility — SDK/API, third-party integrations, and GPIO — supports custom IoT applications and ecosystem expansion.
- Public Safety & Private Networks — FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline certified (model-specific); compatible with 4G LTE private networks — trusted for critical and enterprise use.
- Cellular Intelligence — Health stats, carrier selection, SIM/data usage management, and alerting — optimizes performance and reduces costs.
- Surveillance cameras and digital signage
- Oil & gas remote monitoring
- Parallel networking and high-availability IoT
- Semi-rugged or portable fixed/portable deployments
- Cellular — LTE Cat 4; dual SIM (4FF); PTCRB (U.S.), GCF (global); carriers: AT&T, T-Mobile, Verizon
- Wi-Fi — Dual-band concurrent 802.11ax (Wi-Fi 6)
- Ports — 2x GbE RJ45 (LAN/WAN switchable); 1x USB
- Throughput — Firewall 480 Mbps; VPN tunnels up to 10
- GNSS — Active
- Power — No PoE; AC adapter (antennas/power adapter not included with all SKUs)
- Environmental — -20°C to +60°C (-4°F to +140°F); metal form factor
- Certifications — Public safety: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline; regional carrier approvals
