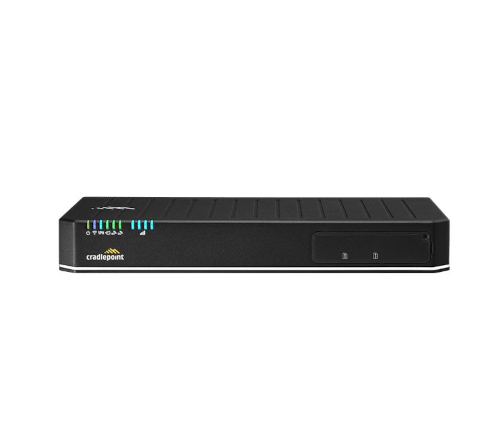

E3000 Series

The Cradlepoint NetCloud for Branch with E3000 Series Enterprise Router is suited for fixed offices, healthcare, financial services and retail locations, ideally when combined with need for security services at scale with performance. The all-in-one form factor includes full-featured routing, security, switching with PoE ports and Wi-Fi, making it easy to connect branches to the Internet and critical applications without the need for extra hardware or complicated configurations. And the embedded LTE or 5G modem means that connectivity is always available from day one without waiting for a wired connection.

Ideal for Wireless WAN
For an all wireless WAN, the E3000 Series Router offers Gigabit LTE or 5G NR1 performance, which can support the throughput and service needs of an enterprise branch office or store with the ability to add a second LTE or 5G connection for increased available bandwidth and reliability. For organizations moving to a Wireless WAN, the E3000 Series Router offers the ability to pair with a wired link and use LTE or 5G as a failover connection or a primary connection.

5G Performance Embedded or Optimized
The E3000 Enterprise Branch Router offers 5G performance in two form factors. As a router with embedded 5G, the platform ships standard with the modem as well as a second slot for dual modem capabilities. As a 5G-optimized LTE router, it has the ability to act as a controller for a Cradlepoint 5G Wideband Adapter so that the modem can be placed for optimal signal coverage. The unique capability of Cradlepoint to operate the adapter in captive mode means that the two separate, Ethernet-connected appliances can be managed as a single entity. The two form factors ensure 5G performance in the manner that best suits the deployment needs.

• 5G & LTE Connectivity — Embedded 5G low/mid-band or Cat 20/18 LTE — enables fast day-1 or primary wireless access with automatic failover for highly resilient hybrid WAN.
• Wi-Fi 6 — Dual-radio, dual-concurrent 802.11ax with DFS — provides high-speed, low-latency wireless coverage for multiple devices.
• SD-WAN & Advanced Networking — Application-aware routing, traffic steering, QoS, dynamic routing, and VPN support — optimizes performance and ensures seamless integration with existing networks.
• Unified Edge Security — Zone-based firewall, IDS/IPS, web filtering, zero-trust access, and FIPS 140-3 Level 1 (under test) — delivers multi-layered protection at the edge.
• Cloud Management — Ericsson NetCloud Manager enables zero-touch deployment, real-time diagnostics, cellular intelligence, analytics, bulk updates, and SASE features — simplifies operations across distributed sites.
• Private Network Compatibility — Supports CBRS, 4G LTE, and 5G private networks — ideal for secure enterprise or campus environments.
• Extensibility — SDK/API, third-party integrations, edge compute (Docker), and Bluetooth accessory slot — allows customization and IoT ecosystem expansion.

• Medium branches needing security and cloud application performance
• Hybrid WAN sites with resilient wireless requirements
• Retail, healthcare, financial services, and fixed offices
• Private cellular network deployments

• Cellular — 5G NR (Rel 15/16) or Cat 20/18 LTE; dual-modem support; 4x SMA (5G) or 4x SMA (LTE) connectors; GNSS passive
• Wi-Fi — Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)

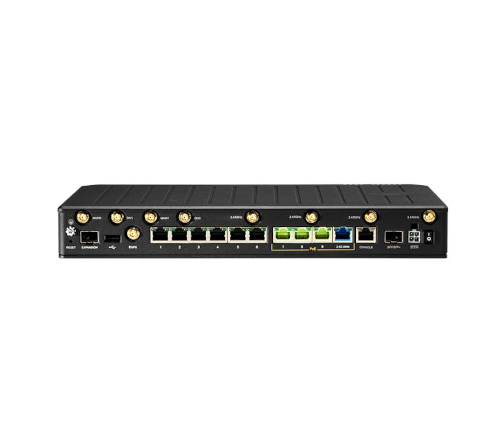

• Ports — 9x GbE RJ45, 1x 2.5 GbE RJ45, 1x SFP+ (LAN/WAN switchable); 1x USB; console ports
• Throughput — Firewall: 2 Gbps; VPN tunnels: 20
• Power — PoE support; AC input
• Environmental — Operating: 0°C to 50°C (32°F to 122°F); metal form factor; rack-mountable
• Certifications — PTCRB (U.S.), GCF (global); carriers: AT&T, EE, Telstra, T-Mobile, Verizon; public safety: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
